Commercial & Industrial Status of Fire Fighting Butterfly Valves
In modern industrial and civil architecture, fire fighting systems serve as the critical line of defense for life and property safety. The performance, reliability, and response speed of control valves within these systems are paramount. Among various valve types, the Butterfly Valve For Fire Fighting System has emerged as the premier choice globally due to its compact structural profile, lightweight design, quick quarter-turn operation, and exceptional sealing capabilities.
Currently, the global market for fire protection valves is experiencing robust growth. Rapid urbanization, stringent safety codes set by municipal authorities, and an increasing awareness of workplace safety are driving the demand for certified fire safety components. Historically, traditional gate valves dominated fire sprinkler pipelines. However, technical evolutions have shifted the industry standard toward high-performance butterfly valves. These valves not only reduce the physical footprint of piping manifolds in cramped riser rooms but also significantly lower installation and maintenance overheads.
Furthermore, regulatory compliance defines the commercial landscape of fire safety valves. Manufacturers must adhere to international standards such as UL (Underwriters Laboratories) listing and FM (Factory Mutual) approval, alongside regional standards like CE, WRAS, and GOST. These certifications guarantee that the butterfly valves can withstand high pressure, resist corrosion over decades of standby status, and operate flawlessly during emergency activations.

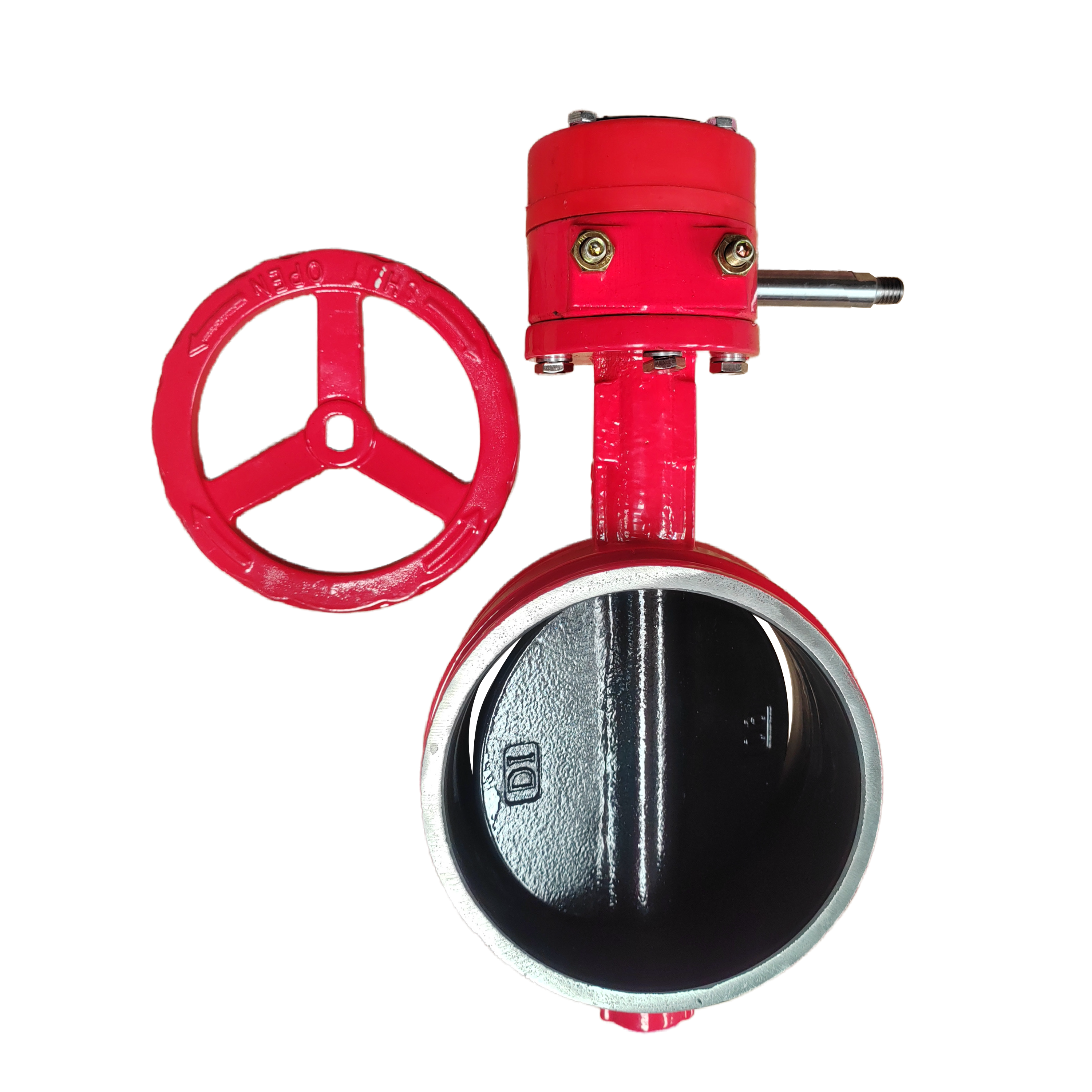

The integration of monitoring systems has revolutionized fire safety. Modern fire fighting butterfly valves are increasingly equipped with built-in supervisory switch gearboxes (remote signal control). This allows building management systems (BMS) and fire control panels to monitor the valve's open or closed status in real-time, preventing accidental shutoffs that could render sprinkler systems useless during a fire event.
Deep-Dive Application Scenarios in Fire Protection
1. Wet Pipe Sprinkler Systems
Wet pipe sprinkler systems are the most common fire protection installations. In these setups, the pipes are constantly filled with pressurized water. Butterfly valves are installed as main control valves or zone isolation valves. They must maintain a bubble-tight seal under constant static pressure. Because these valves may remain open for years without operation, they must feature high-grade EPDM seats and stainless steel discs to prevent vulcanization and corrosion binding.
2. Dry Pipe & Pre-Action Systems
Commonly deployed in unheated warehouses, libraries, and data centers, dry pipe and pre-action systems keep piping filled with pressurized air or nitrogen rather than water. When a fire is detected, the dry pipe valve opens, allowing water to flood the system. Butterfly valves in these systems act as upstream isolation mechanisms. The valve's design must handle the rapid transition from gaseous pressure to high-velocity water flow without causing water hammer or structural damage.
3. Deluge Systems
Deluge fire systems are used in high-hazard environments like chemical plants, aircraft hangars, and oil refineries where rapid fire spread is a critical risk. These systems feature open sprinkler heads, and the entire piping network is flooded simultaneously when activated. Butterfly valves utilized here are often automated using pneumatic or electric actuators, integrated directly with flame or heat detection arrays to ensure instantaneous water delivery.
4. Fire Pump Stations & Riser Manifolds

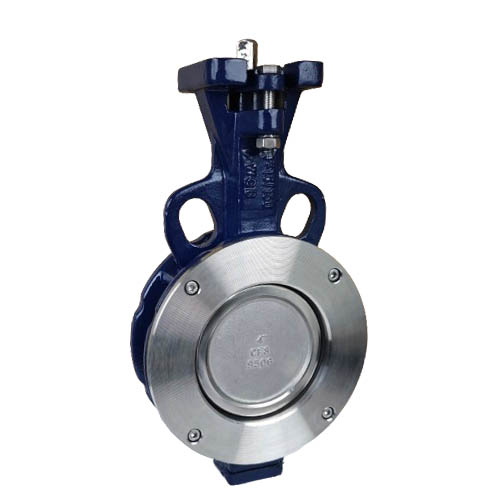

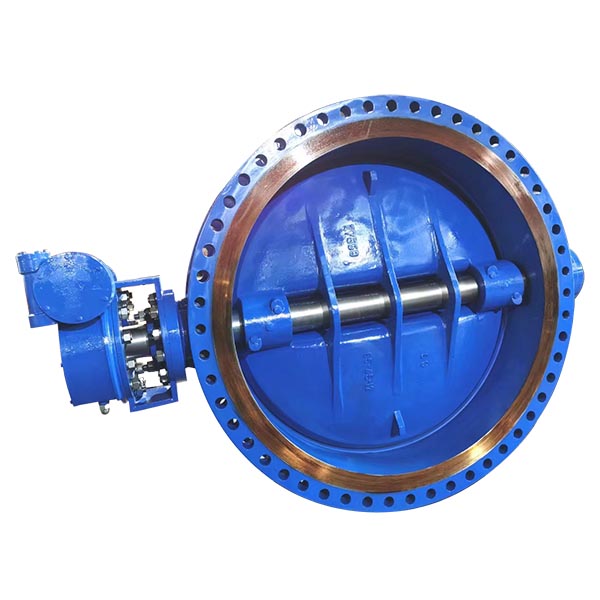

Within the mechanical heart of a building's fire safety infrastructure—the fire pump room—butterfly valves are used on both the suction and discharge lines of the fire pumps. Due to high vibration and turbulent flow conditions generated by fire pumps, robust concentric or double eccentric butterfly valves with ductile iron bodies are essential to ensure structural integrity and long-term operational readiness.
Future Trends in Fire Protection Valve Technology
As smart cities and IoT (Internet of Things) architectures evolve, fire protection systems are undergoing a digital transformation. The traditional mechanical butterfly valve is adapting to meet these new technological demands. Key developments shaping the future of fire safety valves include:
- Smart Telemetry & Predictive Maintenance: Future butterfly valves will integrate sensors that measure line pressure, flow rate, and valve disc position. This data, transmitted wirelessly, allows building operators to perform predictive maintenance, identifying mineral buildup or seal degradation before a critical failure occurs.
- Advanced Coating Technologies: Corrosion is the primary enemy of fire protection systems. The industry is moving towards advanced electrostatic epoxy coatings (both interior and exterior) that provide superior resistance to harsh municipal water chemistry and saline coastal environments.
- Eco-Friendly & Safe Materials: With global regulations tightening around chemical leaching in water systems, lead-free brass, high-grade ductile iron, and certified non-toxic elastomers (like specialized WRAS-approved EPDM) are becoming standard across all fire valve lines, ensuring safety even if the fire lines are connected to potable water backups.
- Optimized Flow Dynamics: Advanced CFD (Computational Fluid Dynamics) modeling is helping manufacturers design butterfly valve discs with streamlined profiles. This reduces head loss (flow resistance), allowing engineers to optimize fire pump sizing and reduce overall energy consumption in large-scale commercial complexes.
Company Profile
Tianjin Zhongfa Valve Co., Ltd., founded in 2006, is a premier valve manufacturer located in the industrial hub of Tianjin, China. Over the past two decades, we have dedicated ourselves to the engineering, production, and global supply of high-quality fluid control solutions, specializing in butterfly valves, gate valves, check valves, and knife gate valves.
Our valves comply strictly with international manufacturing standards, including ASTM, ANSI, ISO, BS, DIN, GOST, JIS, and KS. Offering sizes ranging from DN40 to DN1200 (and up to DN3000 for specialized gate valves) with nominal pressure ratings from 0.1Mpa to 2.0Mpa (and up to 4.0Mpa), our products are built to perform reliably within temperature ranges of -30℃ to 200℃.
Whether handling non-corrosive or corrosive gases, fluids, semi-fluids, solids, or powders, ZFA valves provide dependable service. Our products are widely utilized across diverse industries, including HVAC, fire control systems, water conservancy projects, municipal water supply and drainage, electric power plants, petroleum refining, and chemical processing.
We maintain highly efficient and strict quality control management systems, providing timely and effective pre-sale, sales, and after-sales support. Our commitment to quality and customer satisfaction is backed by our ISO9001 and CE Certifications, ensuring every valve leaving our plant meets international engineering standards.
Our Advantages
OEM Manufacturing
We are a trusted OEM manufacturer for prestigious brands and clients in Moscow (Russia), Barcelona (Spain), Texas (USA), Alberta (Canada), and over 5 other major global regions.
Valve Parts Machining

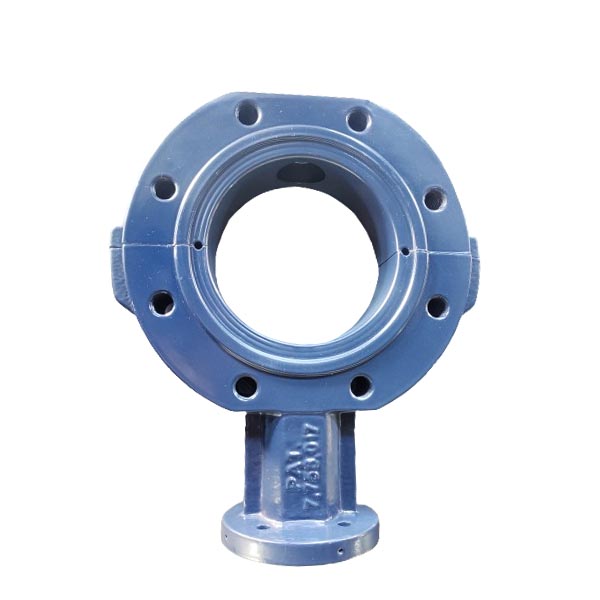

We don't just assemble; we manufacture key valve parts—including bodies, discs, stems, and handles. We have supplied regular customers with custom-molded parts based on drawings for over 10 years.
Advanced Machinery
Our workshop features 30 state-of-the-art machines, including CNC machining centers, semi-automatic lathes, high-pressure testing rigs, and optical spectrographs for chemical analysis.
Optimized Lead Times
Because we maintain a massive stock of raw castings and finished valve components, we can achieve exceptionally short lead times for standard wafer, lug, and flanged valves.
Rigorous QC Protocols
Many of our wholesale partners have worked with us for over a decade. This long-term trust is built upon our multi-stage quality control process, including 100% pressure shell and seat testing.
Competitive Pricing
By processing raw castings, machining components, and assembling in-house, we eliminate intermediary costs and offer highly competitive pricing directly to our global customers.
Factory Tour & Production Facilities
Explore our advanced manufacturing plants, machining centers, and quality control departments. We invest continuously in automation and high-precision machinery to ensure optimal valve performance.
Tianjin Zhongfa Valve - Gate Valve Manufacturer
In addition to our world-class butterfly valves, Tianjin Zhongfa Valve is a leading OEM gate valve manufacturer in China. Founded in 2006, our gate valve lines are engineered to provide reliable isolation for high-pressure fire mains, municipal water networks, and industrial systems.
Our gate valves comply with international standards such as ASTM, ANSI, ISO, BS, DIN, GOST, JIS, and KS. We manufacture sizes from DN40 to DN3000, with nominal pressure ratings up to 2.5Mpa, designed to perform consistently in media temperatures from -30℃ to 200℃. Today, our gate valves are exported to 22 countries, including the United States, Russia, Canada, and Spain.
Industrial Gate Valve Classifications
ZFA Valve Certificates
Our commitment to manufacturing excellence is certified by leading international testing bodies, ensuring our valves comply with rigorous safety and performance standards.
ZFA Valve - Butterfly Valve Manufacturer in China
ZFA VALVE, established in 2006, is a premier butterfly valve OEM manufacturer based in Tianjin, China. Leveraging 19 years of dedicated industry experience, we offer a comprehensive product line that spans from basic concentric wafer butterfly valves to advanced high-performance triple offset butterfly valves.
As a trusted, experienced butterfly valves factory, our manufacturing processes strictly adhere to international standards such as ASTM, ANSI, ISO, BS, DIN, GOST, JIS, and KS. We offer valves in sizes ranging from DN40 to DN3000, with nominal pressure ratings from 0.1Mpa to 4.0Mpa, designed to perform reliably in temperatures from -30℃ to 200℃.
Our catalog is categorized to meet diverse connection, material, and pressure requirements:

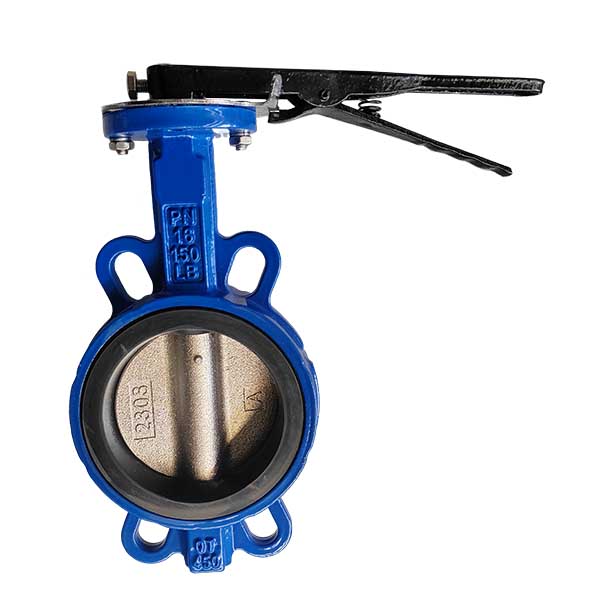

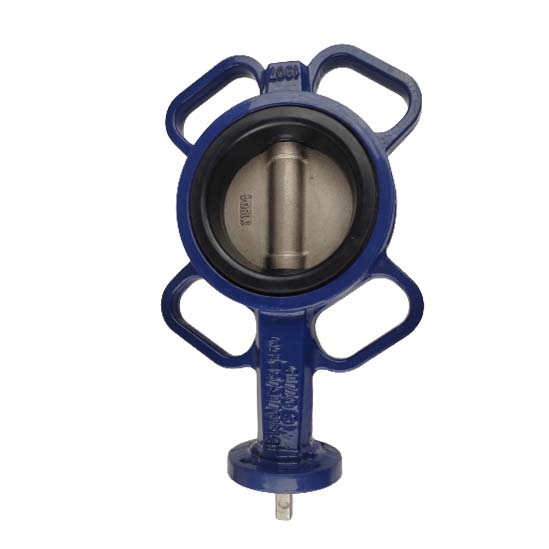

- By Connection: Wafer Butterfly Valve, Flanged Butterfly Valve, and Lug Butterfly Valve.
- By Material: Cast Iron, Carbon Steel, Stainless Steel, and Brass/Bronze.
- By Pressure Rating: PN10, PN16, PN25, PN40, 150LB, 300LB, and 600LB.
We export to 22 countries, including the United States, Russia, Canada, and Spain. If you are seeking a reliable butterfly valve supplier, wholesaler, or OEM partner to support your commercial projects, ZFA Valve is ready to deliver stable quality and cost-effective solutions.
Production Facilities & Finished Products
