PN16 DN80 CF8 Double-Shaft Disc Design Wafer Butterfly Valve

The PN16 DN80 wafer-style butterfly valve features a replaceable EPDM seat and a CF8 stainless steel milwaukee type Double-Shaft Disc Design, offering reliable shut-off performance and easy seat replacement. Designed for water treatment, HVAC, and general industrial applications, it serves as a practical solution for shut-off duties in low- to medium-pressure piping systems.

FOB Price: US $0.5 - 9,999 / Piece

Sample: Available

Supply Ability: 10000 PCs per Month

Size: 2”-48”/DN50-DN1200

Pressure Rating: PN10/16, JIS5K/10K, 150LB

Warranty: 18 Month

Brand Name: ZFA Valve

Service: OEM

Email Us

Product Detail

Size & Pressure Rating & Standard
Size	DN40-DN1200
Pressure Rating	PN10, PN16, CL150, JIS 5K, JIS 10K
Face to Face STD	API609, BS5155, DIN3202, ISO5752
Connection STD	PN6, PN10, PN16, PN25, 150LB, JIS5K, 10K, 16K, GOST33259
Upper Flange STD	ISO 5211
Material
Body	Cast Iron(GG25), Ductile Iron(GGG40/50)
Disc	DI+Ni, Carbon Steel(WCB A216), Stainless Steel(SS304/SS316/SS304L/SS316L) , Duplex Stainless Steel(2507/1.4529), Bronze, DI/WCB/SS coated with Epoxy Painting/Nylon/EPDM/NBR/PTFE/PFA
Stem/Shaft	SS416, SS431, SS304, SS316, Duplex Stainless Steel, Monel
Seat	NBR, EPDM/REPDM, PTFE/RPTFE, Viton, Neoprene, Hypalon, Silicon, PFA
Bushing	PTFE, Bronze
O Ring	NBR, EPDM, FKM
Actuator	Hand Lever, Gear Box, Electric Actuator, Pneumatic Actuator

Product Display

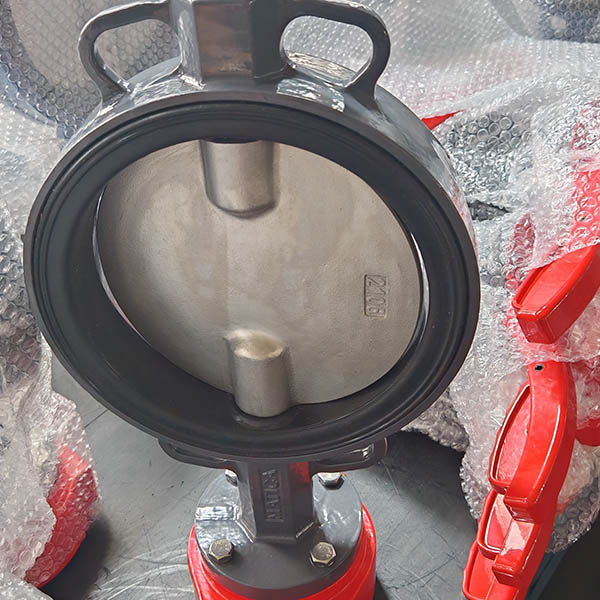

milwaukee disc worm gear butterfly valve

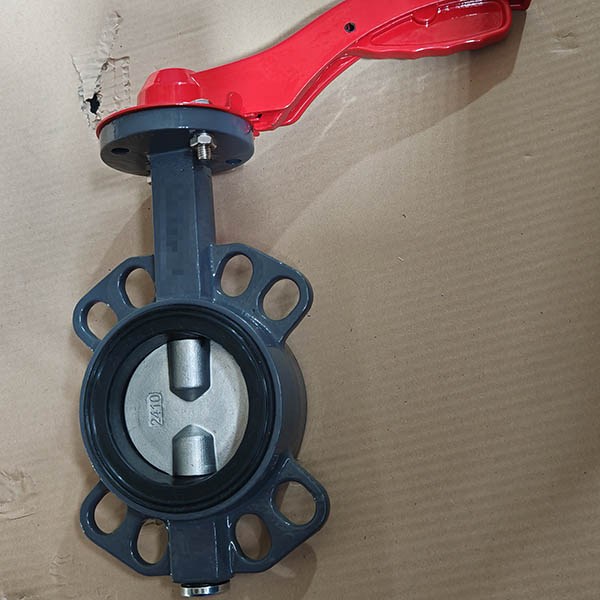

CF8 Didsc double shaft wafer butterfly valve

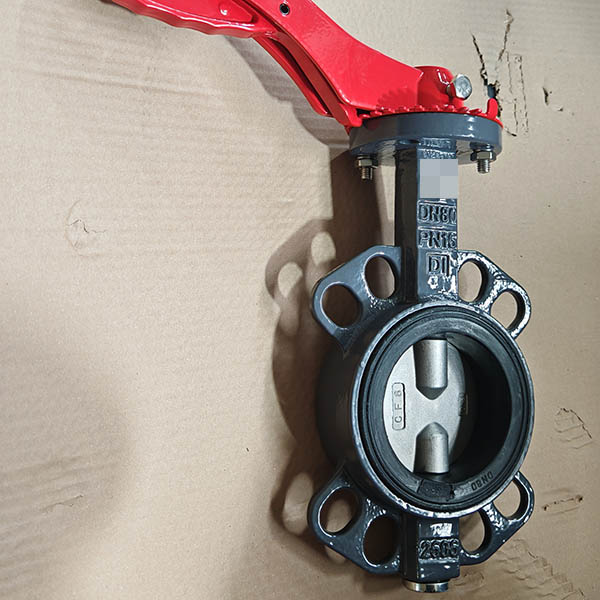

3inch double shaft wafer butterfly valve

Product Advantage of worm gear wafer bfv valve

Replaceable EPDM Seat – The EPDM seat can be removed and replaced without replacing the entire valve, helping reduce maintenance costs and downtime.
CF8 Stainless Steel Disc – The CF8 disc provides good corrosion resistance and mechanical strength for water and general industrial services.
Reliable Sealing – The resilient EPDM seat provides tight shut-off and helps maintain sealing performance through repeated operation.
Low Operating Torque – The concentric butterfly valve design minimizes friction between the disc and seat, supporting smooth operation and efficient actuator sizing.
Flexible Actuation – Suitable for manual operation with a lever or gearbox, as well as pneumatic or electric actuators for automated systems.
Easy Maintenance – The replaceable-seat construction simplifies maintenance and allows the sealing component to be renewed when required.
Double Shaft Design – The disc is securely connected to the upper and lower shafts, providing stable disc support and reliable torque transmission during valve operation.
Upper and Lower Shaft Connection disc- features protrusions at the top and bottom to accommodate the valve stem, while the central section is flat, thereby reducing head loss.

FAQ of Two Shaft Wafer butterfly valve

Q: Are you a Factory or Trading?
A: We’re a factory with 17 years production experience, OEM for some customers around the world.

Q: What is your After-sales service term?
A: 18 months for all our products.

Q: Do you accept custom design on size?
A: Yes.

Q: What's your terms of payment?
A : T/T, L/C.

Q: What is your transportation method?
A: By sea, by air mainly, we also accept express delivery.

Q. What is a Worm Gear Operated CF8 Disc Double Stem Wafer Butterfly Valve?

A worm gear operated CF8 disc double stem wafer butterfly valve is a type of industrial valve that is used to control the flow of a fluid through a pipeline. It is operated by a worm gear mechanism and features a CF8 disc with double stems for added strength and stability.

Q. What are the main applications of this type of butterfly valve?

This type of butterfly valve is commonly used in various industries including chemical, petrochemical, oil and gas, water and wastewater, power generation, and HVAC. It is suitable for both general and industrial applications.

Q. What are the key features of a worm gear operated CF8 disc double stem wafer butterfly valve?

Some key features of this type of butterfly valve include a compact wafer design for easy installation, a durable CF8 disc for reliable performance, a double stem design for added strength, and a worm gear mechanism for precise operation and control.

Q. What materials are used in the construction of this butterfly valve?

The main materials used in the construction of a worm gear operated CF8 disc double stem wafer butterfly valve include stainless steel for the body and disc, and carbon steel for the stem and other internal components. These materials are chosen for their durability and resistance to corrosion.

Q. What are the benefits of using a worm gear operated CF8 disc double stem wafer butterfly valve?

Some of the benefits of using this type of butterfly valve include its compact and lightweight design, ease of installation, precise control and operation, reliability, and suitability for a wide range of industrial applications. It is also cost-effective and requires minimal maintenance.
