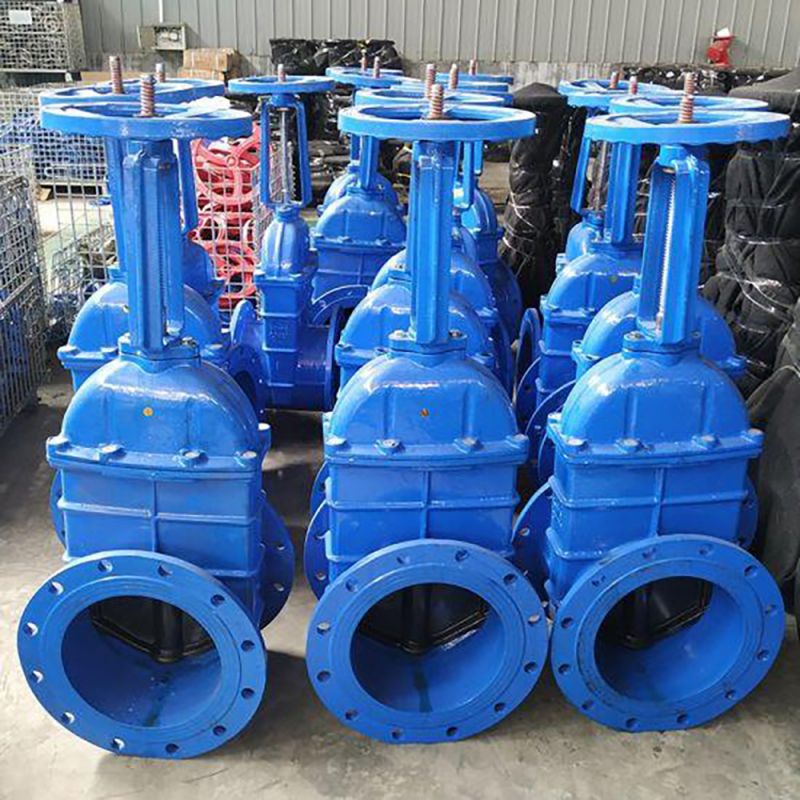

DI PN10/16 Class150 Soft Sealing Rising Stem Gate Valve

Soft sealing gate valve are divided in rising stem and non rising stem. Usually, rising stem gate valve is expensive than non rising stem gate valve. Soft sealing gate valve body and gate are usually made of cast iron and the sealing material is usually EPDM and NBR. Nominal pressure of the soft gate valve is PN10,PN16 or Class150. We can choose the suitable valve according the medium and pressure.

  • Size: 2”-48”/DN50-DN1200
  • Pressure Rating: PN10/16, JIS5K/10K, 150LB
  • Warranty:: 18 Month
  • Brand Name: ZFA Valve
  • Service: OEM
  • Product Detail

    Product Detail

    Size & Pressure Rating & Standard
    Size DN40-DN1200
    Pressure Rating PN10, PN16, CL150
    Face to Face STD BS5163, DIN3202 F4, API609
    Connection STD BS 4504 PN6/PN10/PN16, DIN2501 PN6/PN10/PN16, ISO 7005 PN6/PN10/PN16, JIS 5K/10K/16K,  ASME B16.1 125LB, ASME B16.1 150LB, AS 2129 Table D and E
    Upper Flange STD ISO 5211
    Body Cast Iron(GG25), Ductile Iron(GGG40/50)
    Disc Cast Iron(GG25), Ductile Iron(GGG40/50)
    Stem/Shaft Stainless Steel 304(SS304/316/410/420)
    Seat CF8/CF8M+EPDM
    Bushing PTFE, Bronze
    O Ring NBR, EPDM, FKM
    Actuator Gear Box, Electric Actuator, Pneumatic Actuator

    Product Display

    Non-rising Stem Gate Valve (9)
    Non-rising Stem Gate Valve (5)
    Non-rising Stem Gate Valve (22)
    Non-rising Stem Gate Valve (21)
    Non-rising Stem Gate Valve (18)
    Non-rising Stem Gate Valve (11)

    Product Advantage

    The stem nut of the rising stem gate valve is set on the valve cover or bracket. When the valve is opened and closed, the stem is lifted and lowered by rotating the screw nut. In this structure, the thread of the valve stem is not in contact with the medium, and is not easily corroded by the medium, and at the same time, it is beneficial to the lubrication of the thread part of the valve stem.

    Advantages of gate valve:

    1) Small fluid resistance;

    2) Small torque required for opening and closing;

    3) It can be used on the ring pipeline where the medium flows in two directions, that is to say, the flow direction of the medium is not restricted;

    4) When fully opened, The sealing surface is eroded by the working medium and is smaller than the globe valve。5) The shape is relatively simple, and the manufacturing process is good.

    6) The structure length is relatively small. Usually, the pipeline with a nominal size larger than DN50 is used as the device to cut off the medium

    It is used as a cutoff and adjusting equipment for the various water supply and drainage pepeline in building ,chemial ,medicine,textile,ship and other  industries.  Zhongfa valve can offer OEM &ODM gate valves and parts in China.Zhongfa valve's philosophy is to seek for high quality products with optimal service with the most ecmonical price. All valve product  are test two times before shipping to ensure the quality of the product. Welcome to visit our factories. We will show the Craftsmanship of the valves.
