SS2205 Dual Plate Check Valve

Dual plate check valve also called wafer type butterfly check valve. This kind of check vavle has good non-return performance, safety and reliability, small flow resistance coefficient. It is mainly used in petroleum,chemical, food, water supply and drainage, and energy systems. A wide range of materials are available, such as cast iron, ductile iron, stainless steel and so on.


  • Size: 2”-48”/DN50-DN1200
  • Pressure Rating: PN6/PN10/16
  • Warranty: 18 Month
  • Brand Name: ZFA Valve
  • Service: OEM
  • Product Detail

    Product Detail

    Size & Pressure Rating & Standard
    Size DN50-DN800
    Pressure Rating PN6,PN10, PN16, CL150
    Face to Face STD API609, BS5155, DIN3202, ISO5752
    Connection STD PN6, PN10, PN16, DIN 2501 PN6/10/16, BS5155

    Material
    Body Cast Iron(GG25), Ductile Iron(GGG40/50), Carbon Steel(WCB A216), Stainless Steel(SS304/SS316/SS304L/SS316L) , Duplex Stainless Steel(2507/1.4529), Bronze, Aluminium Alloy.
    Disc DI+Ni, Carbon Steel(WCB A216), Stainless Steel(SS304/SS316/SS304L/SS316L) , Duplex Stainless Steel(2507/1.4529), Bronze, DI/WCB/SS coated with Epoxy Painting/Nylon/EPDM/NBR/PTFE/PFA
    Stem/Shaft SS416, SS431, SS304, SS316, Duplex Stainless Steel, Monel
    Seat NBR, EPDM/REPDM, PTFE/RPTFE, Viton, Neoprene, Hypalon, Silicon, PFA

    Product Display

    check valve-4
    微信图片_202304060828166

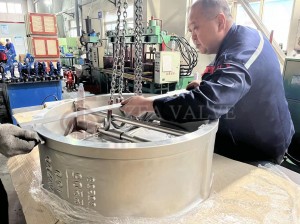

    微信图片_20230406082819
    check valve-8
    check valve-2
    check valve-8

    Product Advantage

    Check valve, also known as one-way valve, check valve, back pressure valve, this type of valve is automatically opened and closed by the force generated by the flow of the medium itself in the pipeline, and belongs to an automatic valve. The function of the check valve is to prevent the backflow of the medium, the reverse rotation of the pump and its driving motor, and the discharge of the medium in the container. Double-plate check valve is a very common type of check valve. By choosing different materials, the wafer check valve can be applied to water, steam, oil in petrochemical, metallurgy, electric power, light industry, food and other industries. , nitric acid, acetic acid, strong oxidizing medium and urea and other media.

    The double-plate check valve , two-lobed circular disc fixed on the valve body with a pin shaft. There are two torsion springs on the pin shaft. The disc is installed on the sealing surface of the valve body, and the spring is pressed by the medium pressure. The butterfly plate, when the flow is reversed, closes the valve by spring force and medium pressure. This kind of butterfly check valve is mostly of wafer structure, small in size, light in weight, reliable in sealing, and can be installed in horizontal pipelines and vertical pipelines.
