Lug Type Triple Offset Butterfly Valve

Lug type triple offset butterfly valve is a kind of metal seat butterfly valve. Depending on the working conditions and the medium, different materials can be selected, such as Carbon steel, stainless steel,duplex steel and alum-bronze. And the actuator can be hand wheel, electric and pneumatic actuator. And the lug type triple offset butterfly valve are suitable for pipes larger than DN200.

  • Size: 2”-24”/DN50-DN600
  • Pressure Rating: ASME 150LB-600LB, PN16-63
  • Warranty: 18 Month
  • Brand Name: ZFA Valve
  • Service: OEM
  • Product Detail

    Product Detail

    Size & Pressure Rating & Standard
    Size DN50-DN600
    Pressure Rating ASME 150LB-600LB, PN16-63
    Face to Face STD API 609, ISO 5752
    Connection STD ASME B16.5
    Upper Flange STD ISO 5211
    Body Carbon Steel(WCB A216), Stainless Steel(SS304/SS316/SS304L/SS316L) , Duplex Stainless Steel(2507/1.4529)
    Disc Carbon Steel(WCB A216),  Stainless Steel(SS304/SS316/SS304L/SS316L) , Duplex Stainless Steel(2507/1.4529)
    Stem/Shaft SS416, SS431, SS304, SS316, Duplex Stainless Steel, Monel
    Seat 2Cr13, STL
    Packing Flexible Graphite, Fluoroplastics
    Actuator Hand Lever, Gear Box, Electric Actuator, Pneumatic Actuator


    Product Display

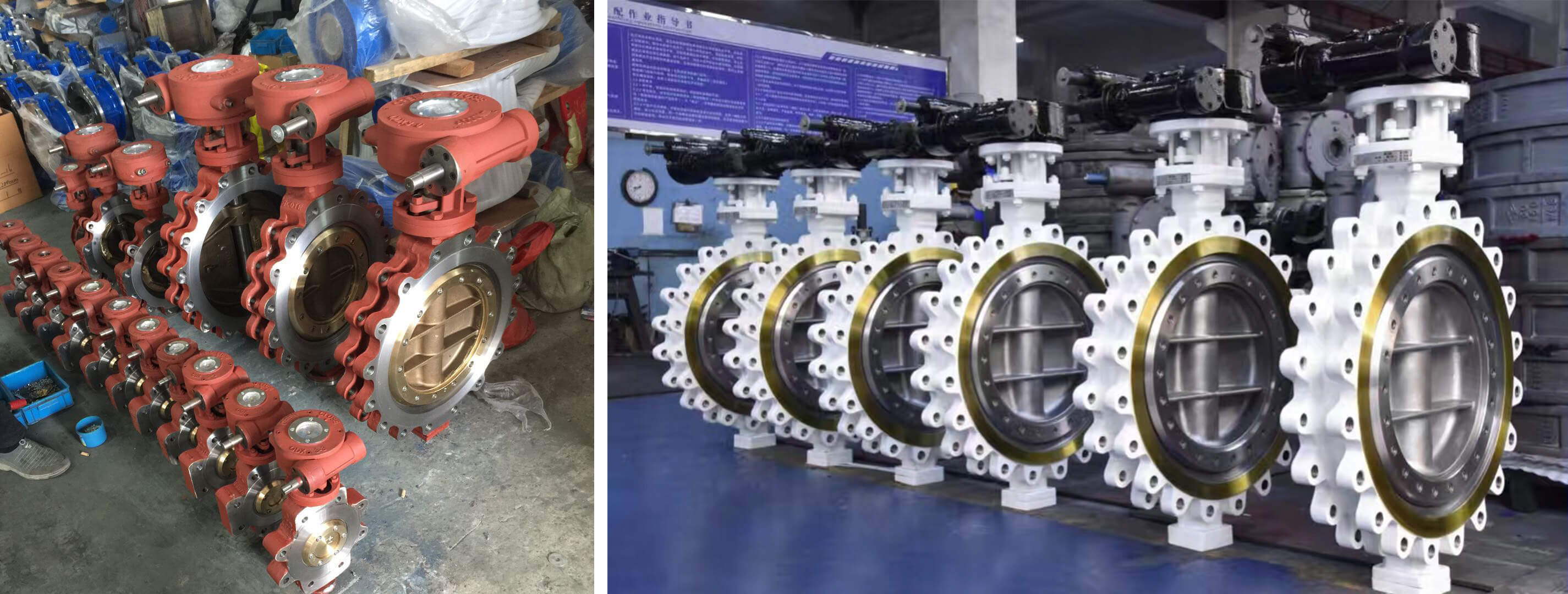

    Triple Offset Lug Butterfly Valve

    Product Advantage

    1. Tight sealing performance due to the offset axis design, minimizing leakage.

    2. Low torque operation, requiring little force to operate.

    3. Capable of handling high temperatures and pressures, making it ideal for industrial settings.

    4. Durability and long service life due to its rugged design and use of high-quality materials.

    5. Wide range of sizes and configurations available, accommodating various pipeline system needs.
