Discount Price Nodular Cast Iron U Flanged Butterfly Valve PTFE seat Replaceable Loose Liner with CE ISO Wras Certificate

 PTFE’s acid and alkali resistance is relatively good, when the ductile iron body with PTFE seat, with stainless steel plate, butterfly valve can be applied in the medium with acid and alkali performance, this configuration of the butterfly valve broadens the use of the valve.




  • Size: 2”-160”/DN50-DN4000
  • Pressure Rating: PN10/16, JIS5K/10K, 150LB
  • Warranty: 18 Month
  • Brand Name: ZFA Valve
  • Service: OEM
  • Product Detail

    By using a sound small business credit, excellent after-sales provider and modern producing facilities, now we have earned an exceptional track record between our clients across the whole world for Discount Price Nodular Cast Iron U Flanged Butterfly Valve PTFE seat Replaceable Loose Liner with CE ISO Wras Certificate, Please truly feel absolutely free to call us at any time. We will reply you when we receive your inquiries. Please note that samples are available before we start our company.
    By using a sound small business credit, excellent after-sales provider and modern producing facilities, now we have earned an exceptional track record between our clients across the whole world for China Double Flange Butterfly Valve Gear Box and U-Type Butterfly Valve for Marine, We can give our clients absolute advantages in product quality and cost control, and now we have full range of molds from up to one hundred of factories. As product updating fast, we succeed in developing many high quality merchandise for our clients and get high reputation.

    Product Detail

    Size & Pressure Rating & Standard
    Size DN40-DN4000
    Pressure Rating PN10, PN16, CL150, JIS 5K, JIS 10K
    Face to Face STD API609, BS5155, DIN3202, ISO5752
    Connection STD PN6, PN10, PN16, PN25, 150LB, JIS5K, 10K, 16K, GOST33259
    Upper Flange STD ISO 5211
    Material
    Body Cast Iron(GG25), Ductile Iron(GGG40/50), Carbon Steel(WCB A216), Stainless Steel(SS304/SS316/SS304L/SS316L) , Duplex Stainless Steel(2507/1.4529), Bronze, Aluminium Alloy.
    Disc DI+Ni, Carbon Steel(WCB A216), Stainless Steel(SS304/SS316/SS304L/SS316L) , Duplex Stainless Steel(2507/1.4529), Bronze, DI/WCB/SS coated with Epoxy Painting/Nylon/EPDM/NBR/PTFE/PFA
    Stem/Shaft SS416, SS431, SS304, SS316, Duplex Stainless Steel, Monel
    Seat NBR, EPDM/REPDM, PTFE/RPTFE, Viton, Neoprene, Hypalon, Silicon, PFA
    Bushing PTFE, Bronze
    O Ring NBR, EPDM, FKM
    Actuator Hand Lever, Gear Box, Electric Actuator, Pneumatic Actuator

    Product Display

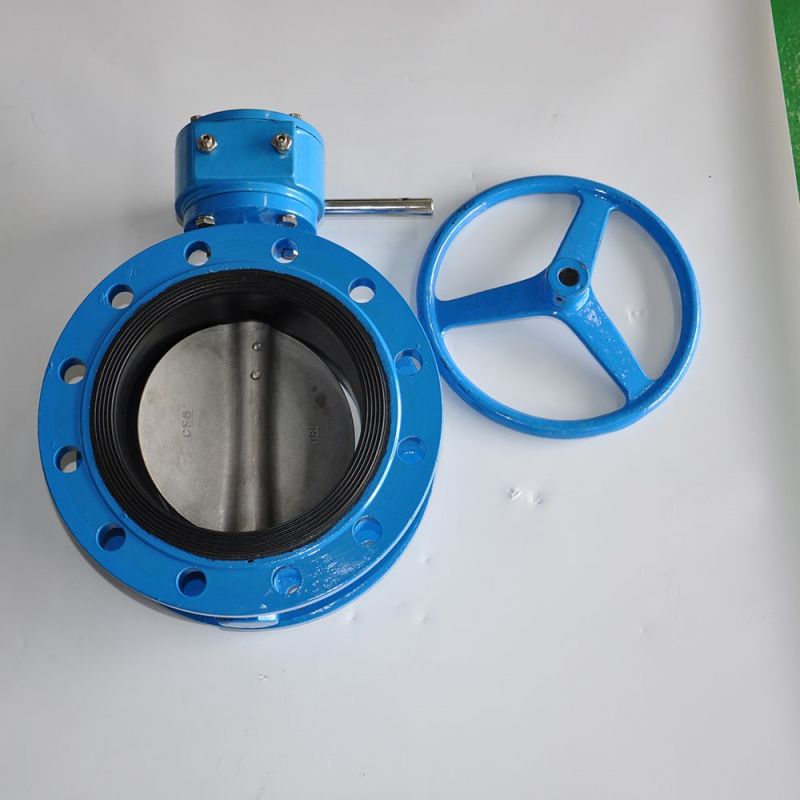

    Flange Type Butterfly Valve (14)

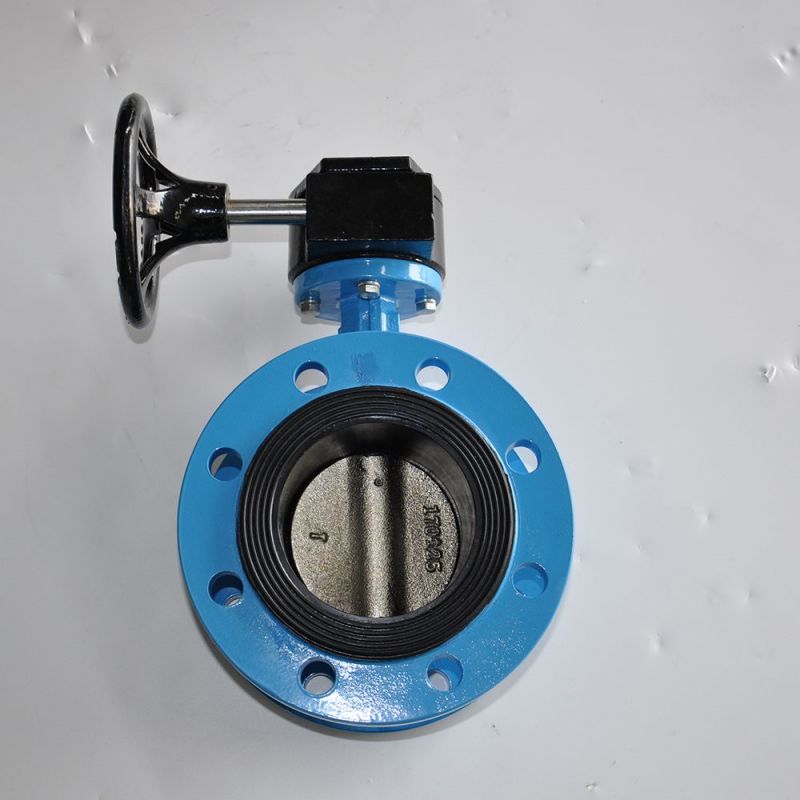

    Flange Type Butterfly Valve (15)

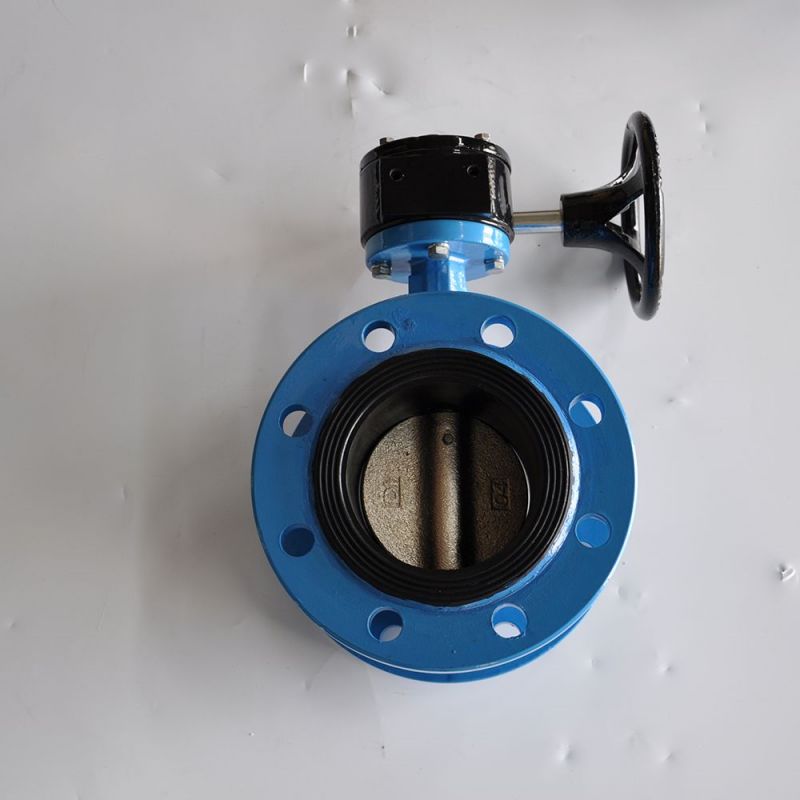

    Flange Type Butterfly Valve (16)

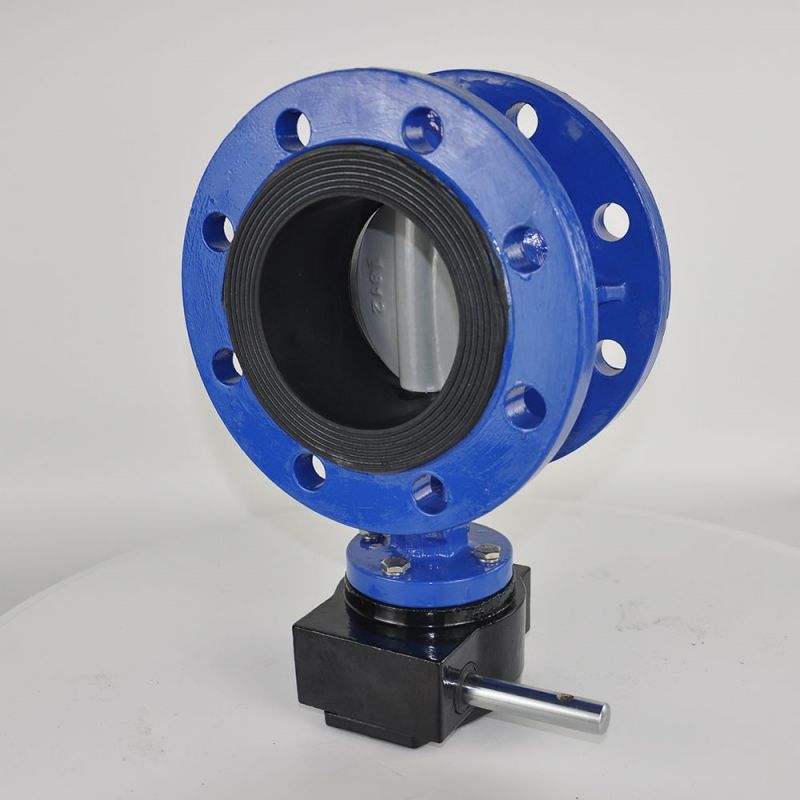

    Flange Type Butterfly Valve (17)

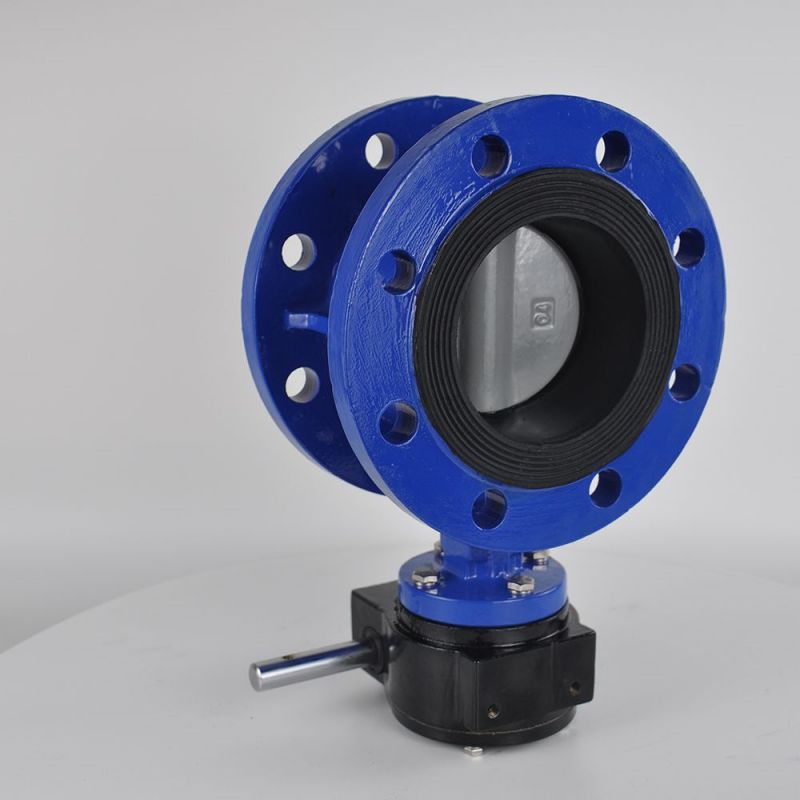

    Flange Type Butterfly Valve (18)

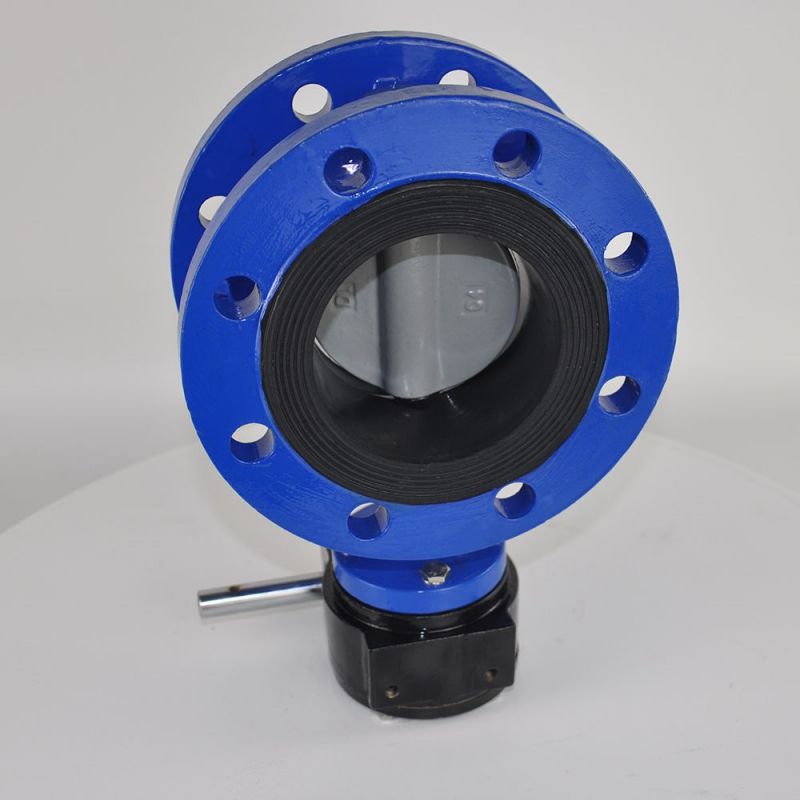

    Flange Type Butterfly Valve (19)

    Product Advantage

    Our valve connection standards include DIN, ASME, JIS, GOST, BS etc., it’s easy for customers to choose the suitable valve, help our customers reduce their stock.

    Our valve has standard thickness according to GB26640, makes it capable of holding high pressure when needed.

    Our valve seat use imported nature rubber, with more than 50% of rubber inside. The seat has a good elasticity property, with long service life. It can be open and close more than 10,000 times with no damage for the seat.

    The valve seat is wide edge seat, sealing gap is wider than regular type, makes the sealing for connection easier. Wider seat also easy to install than narrow seat. The stem direction of the seat has lug boss, with O ring on it, archive the second sealing of the valve.

    Each valve should be cleaned by ultra-sonic cleaning machine, in case of contaminant left inside, guarantee the cleaning of the valve, in case of pollution to the pipeline.

    The valve body use high adhesive force epoxy resin powder, helps it adhere to the body after melting.

    Bolts and nuts use ss304 material, with higher rust protection capability.

    Handle of the valve use ductile iron, is anti-corrosion than regular handle. Spring and pin use ss304 material. Handle part use semicircle structure, with good touch feeling.

    Non-pin stem design adopts anti-blowout structure, the valve stem adopt double jump ring, not only can compensate the error in installation, but also can stop the stem being blow off.

    Each product of ZFA has material report for the main parts of the valve.

    Company Advantage

    Valve Parts Machining: We not only supply valve, but also valve parts, mainly body, disc, stem and handle. Some of our regular customers keeping order valve parts more than 10 years, we also produce valve parts mold according to your drawing.

    OEM: We’re OEM manufacturer for famous customers in Moscow(Russia), Barcelona(Spain), Texas(USA), Alberta(Canada) and 5 other countries.

    Machines: We have total 30 machines (include CNC, machine center, semi-auto machine, pressure testing machine, spectrograph etc.) mainly used for valve part machining.
