Silicon Rubber Disc PTFE Lug & Flange Butterfly Valve Split Body type
Product Detail
| Size & Pressure Rating & Standard | |
| Size | DN40-DN1200 |
| Pressure Rating | PN10, PN16, CL150, JIS 5K, JIS 10K |
| Face to Face STD | API609, BS5155, DIN3202, ISO5752 |
| Connection STD | PN6, PN10, PN16, PN25, 150LB, JIS5K, 10K, 16K, GOST33259 |
| Upper Flange STD | ISO 5211 |
| Material | |
| Body | Cast Iron(GG25), Ductile Iron(GGG40/50), Carbon Steel(WCB A216), Stainless Steel(SS304/SS316/SS304L/SS316L) , Duplex Stainless Steel(2507/1.4529), Bronze, Aluminium Alloy |
| Disc | DI+Ni, Carbon Steel(WCB A216), Stainless Steel(SS304/SS316/SS304L/SS316L) , Duplex Stainless Steel(2507/1.4529), Bronze, DI/WCB/SS lined with PTFE |
| Stem/Shaft | SS416, SS431, SS304, SS316, Duplex Stainless Steel, Monel |
| Seat | EPDM |
| Bushing | PTFE, Bronze |
| O Ring | NBR, EPDM, FKM |
| Actuator | Hand Lever, Gear Box, Electric Actuator, Pneumatic Actuator |
Product Display
Product Advantage
-PTFE Lug Butterfly Valve seats offer excellent resistance to acids, alkalis, solvents, and corrosive media, making them ideal for chemical processing, water treatment, and corrosive fluid applications.
-Silicone rubber valve discs perform well at both low and medium-high temperatures (typically -20°C to 180°C, depending on the rating). Silicone rubber retains its elasticity even when EPDM or NBR may harden or degrade.
-The high elasticity and compression resilience of silicone rubber ensure a tight seal when interacting with the PTFE valve seat.
-PTFE's non-stick properties make it suitable for applications requiring minimal contamination, such as food, pharmaceutical, and hygiene applications.
-Silicone rubber disc butterfly valve offers greater resistance to ozone, UV radiation, and weathering than many conventional elastomers.

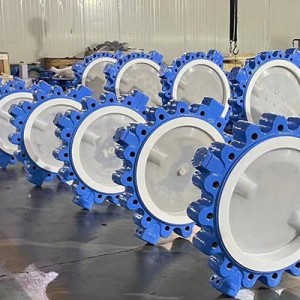

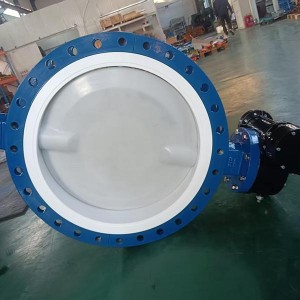

Hot Selling Products
