What Is Water Hammer and How to Fix it?

Water Hammer

What is Water Hammer?

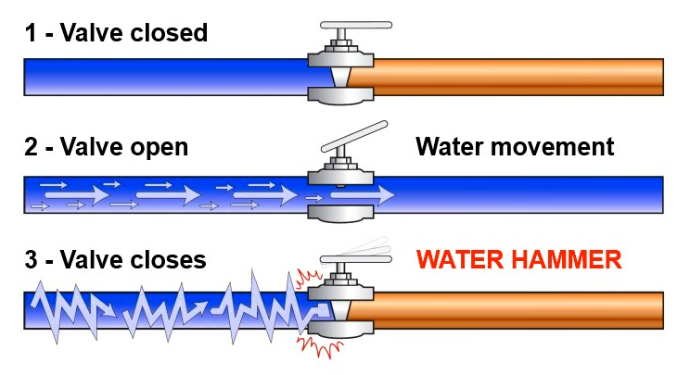

Water hammer is when there is a sudden power failure or when the valve is closed too fast, due to the inertia of the pressure water flow, a shock wave of water flow is generated, just like a hammer hitting, so it is called water hammer. The force generated by the back and forth shock waves of the water flow, sometimes so great, can damage valves and pumps.

When an open valve is suddenly closed, the water flows against the valve and the pipe wall, creating a pressure. Due to the smooth wall of the pipe, the subsequent water flow quickly reaches the maximum under the action of inertia and produces damage. This is the “water hammer effect” in fluid mechanics, that is, positive water hammer. This factor should be considered in the construction of water supply pipelines.

On the contrary, after the closed valve is opened suddenly, it will also produce water hammer, which is called negative water hammer. It also has certain destructive power, but it is not as big as the former. When the electric water pump unit suddenly loses power or starts up, it will also cause pressure shock and water hammer effect. The shock wave of this pressure propagates along the pipeline, which can easily lead to local overpressure of the pipeline, resulting in pipeline rupture and damage to equipment. Therefore, water hammer effect protection has become one of the key technologies in water supply engineering.
Conditions for water hammer

1. The valve suddenly opens or closes;

2. The water pump unit suddenly stops or starts;

3. Single-pipe water delivery to high places (water supply terrain height difference exceeds 20 meters);

4. The total head (or working pressure) of the pump is large;

5. The water velocity in the water pipeline is too large;

6. The water pipeline is too long and the terrain changes greatly.

water Hammer-2

The dangers of water hammer

The pressure increase caused by water hammer can reach several times or even dozens of times the normal working pressure of the pipeline. Such large pressure fluctuations cause harm to the pipeline system mainly as follows:

1. Cause strong vibration of the pipeline and disconnection of the pipeline joint;

2. The valve is damaged, and the serious pressure is too high to cause the pipe to burst, and the pressure of the water supply network is reduced;

3. On the contrary, if the pressure is too low, the pipe will collapse, and the valve and fixing parts will be damaged;

4. Cause the water pump to reverse, damage the equipment or pipelines in the pump room, seriously cause the pump room to be submerged, cause personal casualties and other major accidents, and affect production and life.


check valve-1

Protective measures to eliminate or mitigate water hammer

There are many protective measures against water hammer, but different measures need to be taken according to the possible causes of water hammer.

1. Reducing the flow rate of the water pipeline can reduce the water hammer pressure to a certain extent, but it will increase the diameter of the water pipeline and increase the project investment. When laying out water pipelines, consideration should be given to avoiding humps or drastic changes in slope. The size of the water hammer when the pump is stopped is mainly related to the geometric head of the pump room. The higher the geometric head, the greater the water hammer when the pump is stopped. Therefore, a reasonable pump head should be selected according to the actual local conditions. After stopping the pump in an accident, wait until the pipeline behind the check valve is filled with water before starting the pump. Do not fully open the outlet valve of the water pump when starting the pump, otherwise there will be a large water impact. Most of the major water hammer accidents in many pumping stations occur under such circumstances.

2. Set up water hammer elimination device

(1) Using constant pressure control technology:
Since the pressure of the water supply pipe network changes continuously with the change of working conditions, low pressure or overpressure often occurs during the operation of the system, which is prone to water hammer, resulting in damage to pipes and equipment. The automatic control system is adopted to control the pressure of the pipe network. The detection, feedback control of the start, stop and speed adjustment of the water pump, control the flow, and then maintain the pressure at a certain level. The water supply pressure of the pump can be set by controlling the microcomputer to maintain constant pressure water supply and avoid excessive pressure fluctuations. Hammer chance is reduced.

(2) Install the water hammer eliminator

This equipment mainly prevents water hammer when the pump is stopped. It is generally installed near the outlet pipe of the water pump. It uses the pressure of the pipe itself as the power to realize low-pressure automatic action, that is, when the pressure in the pipe is lower than the set protection value, the drain will automatically open and discharge water. Pressure relief to balance the pressure of local pipelines and prevent the impact of water hammer on equipment and pipelines. Generally, eliminators can be divided into two types: mechanical and hydraulic. reset.

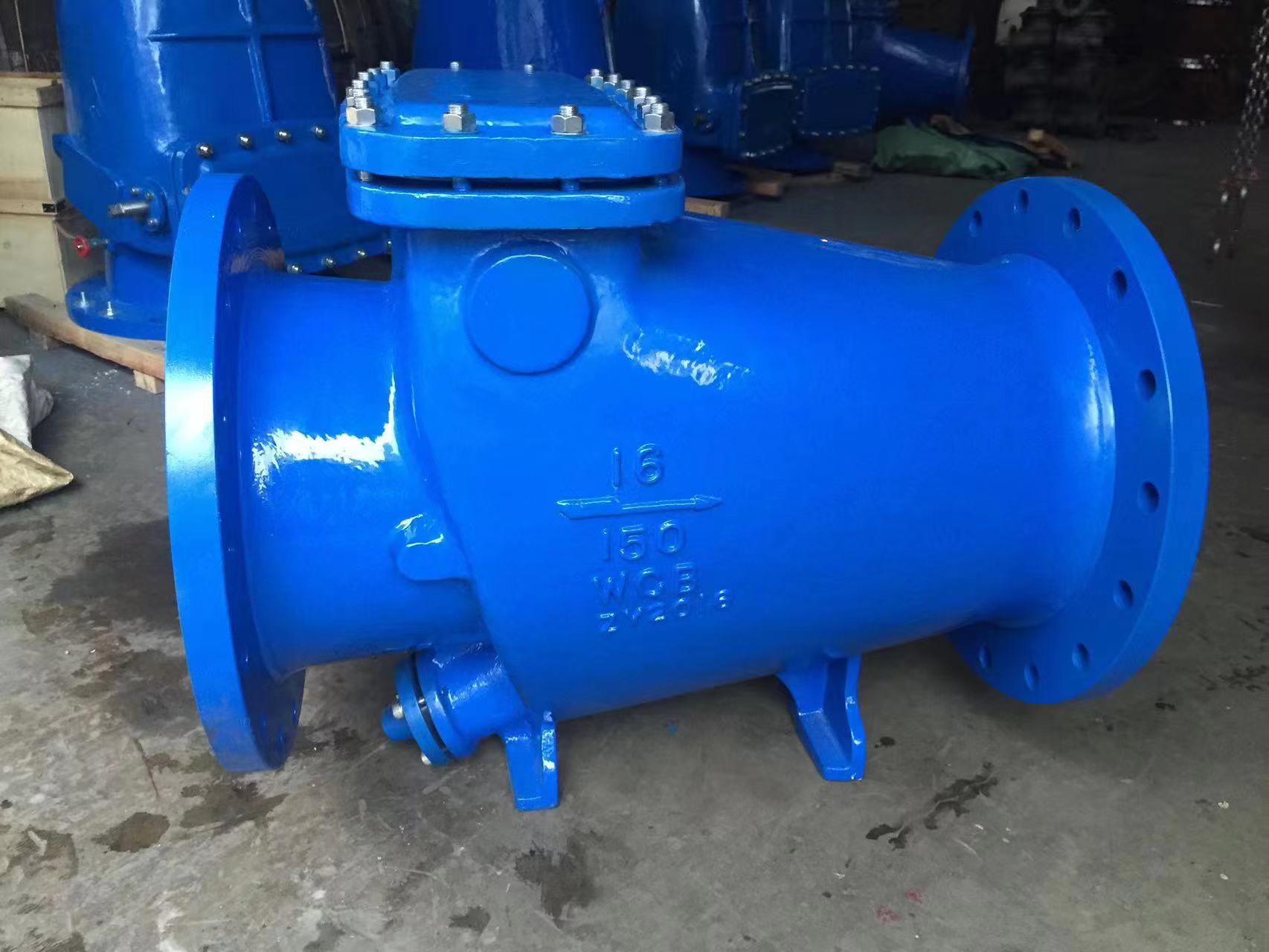

3) Install a slow-closing check valve on the outlet pipe of the large-caliber water pump

It can effectively eliminate the water hammer when the pump is stopped, but because there is a certain amount of water backflow when the valve is actuated, the suction well must have an overflow pipe. There are two types of slow-closing check valves: hammer type and energy storage type. This kind of valve can adjust the closing time of the valve within a certain range according to the needs. Generally, 70% to 80% of the valve is closed within 3 to 7 s after the power failure, and the closing time of the remaining 20% ​​to 30% is adjusted according to the conditions of the water pump and pipeline, generally in the range of 10 to 30 s. It is worth noting that the slow-closing check valve is very effective when there is a hump in the pipeline to bridge the water hammer.

(4) Set up one-way surge tower

It is built near the pumping station or at an appropriate location of the pipeline, and the height of the one-way surge tower is lower than the pipeline pressure there. When the pressure in the pipeline is lower than the water level in the tower, the surge tower will supply water to the pipeline to prevent the water column from being broken and avoid water hammer. However, its depressurizing effect on water hammer other than pump stop water hammer, such as valve closing water hammer, is limited. In addition, the performance of the one-way valve used in the one-way surge tower must be absolutely reliable. Once the valve fails, it may lead to major accidents.

(5) Set up a bypass pipe (valve) in the pumping station

When the pump system is running normally, the check valve is closed because the water pressure on the pressure water side of the pump is higher than the water pressure on the suction side. When the power failure suddenly stops the pump, the pressure at the outlet of the pumping station drops sharply, while the pressure on the suction side rises sharply. Under this differential pressure, the transient high-pressure water in the water suction main pipe is the transient low-pressure water that pushes away the check valve plate and flows to the pressure water main pipe, and increases the low water pressure there; on the other hand, the water pump The water hammer boost on the suction side is also reduced. In this way, the rise and fall of water hammer on both sides of the pumping station are controlled, thereby effectively reducing and preventing water hammer hazards
(6) Set multi-stage check valve

In the longer water pipeline, add one or more check valves, divide the water pipeline into several sections, and set a check valve on each section. When the water in the water pipe flows back during the water hammer process, the check valves are closed one after another to divide the backflush flow into several sections. Since the hydrostatic head in each section of the water pipe (or backflush flow section) is quite small, the water flow is reduced. Hammer Boost. This protective measure can be effectively used in situations where the geometrical water supply height difference is large; but it cannot eliminate the possibility of water column separation. Its biggest disadvantage is: the power consumption of the water pump increases during normal operation, and the cost of water supply increases.

(7) Automatic exhaust and air supply devices are installed at the high point of the pipeline to reduce the impact of water hammer on the pipeline.
