Cast iron and ductile iron butterfly valves are widely used for flow control in various industries, but they differ in material properties, performance, and applications. Below is a detailed comparison to help you understand the differences and select the valve that best suits your needs.
1. Material Composition

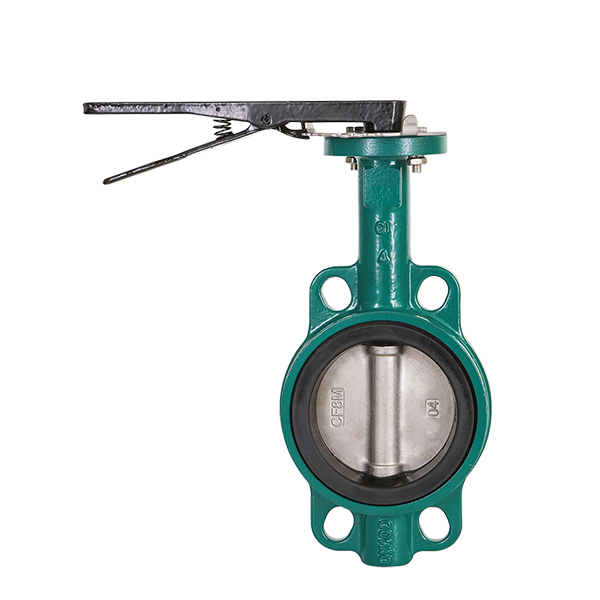

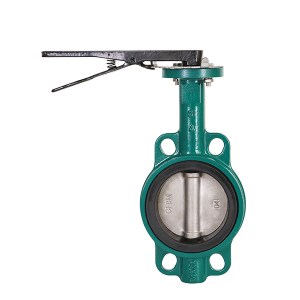

1.1 Cast Iron Butterfly Valve:
- Gray cast iron, an iron alloy with a high carbon content (2-4%).
- Due to its microstructure, carbon exists in the form of flake graphite. This structure causes the material to fracture along the graphite flakes under stress, making it brittle and less flexible.
- Commonly used in low-pressure and non-critical applications.

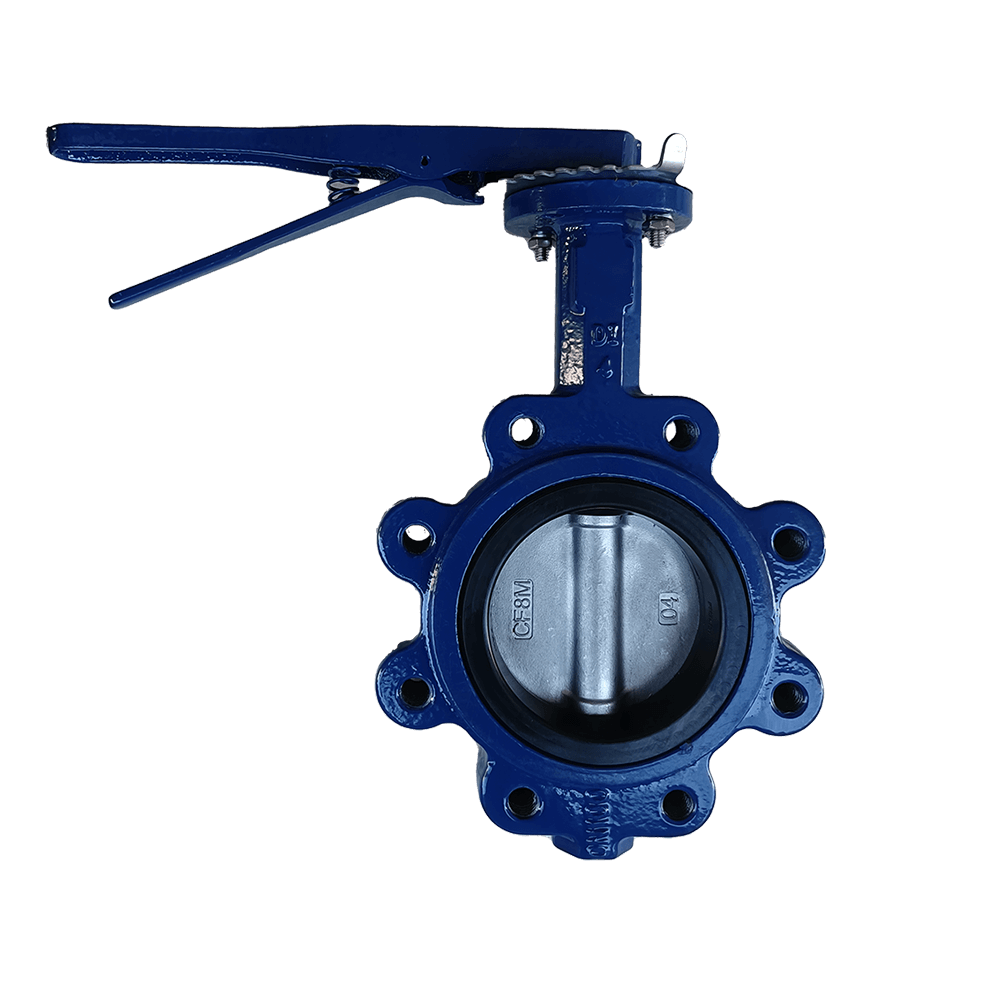

1.2 Ductile Iron Butterfly Valve:
- Made from ductile iron (also known as nodular graphite cast iron or ductile iron), it contains small amounts of magnesium or cerium, which distributes the graphite in a spherical (nodular) shape. This structure significantly improves the material's ductility and toughness.
- Stronger, more flexible, and less prone to brittle fracture than cast iron.
2. Mechanical Properties
2.1 Gray Cast Iron:
- Strength: Low tensile strength (typically 20,000–40,000 psi).
- Ductility: Brittle, prone to fatigue cracking under stress or impact.
- Impact Resistance: Low, prone to fracture under sudden loads or thermal shock.
- Corrosion Resistance: Moderate, depending on environment and coating.
2.2 Ductile Iron:
- Strength: Spherical graphite reduces stress concentration points, resulting in higher tensile strength (typically 60,000–120,000 psi).
- Ductility: More ductile, allowing deformation without cracking.
- Impact Resistance: Excellent, better able to withstand shock and vibration.
- Corrosion Resistance: Similar to cast iron, but can be improved with coatings or linings.
3. Performance and Durability
3.1 Cast Iron Butterfly Valves:
- Suitable for low-pressure applications (e.g., up to 150–200 psi, depending on the design).
- High melting point (up to 1150°C) and excellent thermal conductivity (suitable for vibration damping applications, such as braking systems).
- Poor resistance to dynamic stresses, making them unsuitable for high-vibration or cyclic loading environments.
- Typically heavier, which may increase installation costs.
3.2 Ductile Iron Butterfly Valves:
- Can handle higher pressures (e.g., up to 300 psi or higher, depending on the design).
- Due to its higher strength and flexibility, ductile iron is less likely to break under bending or impact, instead deforming plastically, conforming to the "toughness design" principle of modern materials science. This makes it more suitable for demanding applications.
- More durable in environments with temperature fluctuations or mechanical stress.

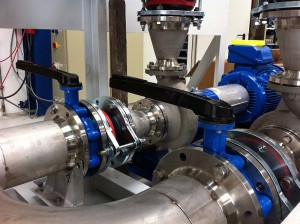

4. Application Scenarios
4.1 Cast Iron Butterfly Valves:
- Commonly used in HVAC systems.
- Used in non-critical systems where cost is a priority. - Suitable for low-pressure fluids such as water, air, or non-corrosive gases (chloride ion <200 ppm).
4.2 Ductile Iron Butterfly Valves:
- Suitable for water supply and wastewater treatment with neutral or weakly acidic/alkaline media (pH 4-10).
- Suitable for industrial applications, including oil and gas, chemical processing, and high-pressure water systems.
- Used in systems requiring higher reliability, such as fire protection systems or pipes with fluctuating pressures.
- Suitable for more corrosive fluids when used with an appropriate lining (e.g., EPDM, PTFE).
5. Cost
5.1 Cast Iron:
Due to its simpler manufacturing process and lower material costs, it is generally less expensive. It is suitable for projects with limited budgets and less demanding requirements. While cast iron is inexpensive, its brittleness leads to more frequent replacements and increased waste.
5.2 Ductile Iron:
Due to the alloying process and superior performance, the cost is higher. For applications requiring durability and strength, the higher cost is justified. Ductile iron is more environmentally friendly due to its high recyclability (>95%).
6. Standards and Specifications
- Both valves comply with standards such as API 609, AWWA C504, or ISO 5752, but ductile iron valves typically meet higher industry requirements for pressure and durability.
- Ductile iron valves are more commonly used in applications requiring compliance with stringent industry standards.
7. Corrosion and Maintenance
- Both materials are susceptible to corrosion in harsh environments, but ductile iron's superior strength makes it perform better when combined with protective coatings such as epoxy or nickel coatings.
- Cast iron valves may require more frequent maintenance in corrosive or high-stress environments.
8. Summary table
|
Feature |
Cast Iron Butterfly Valve |
Ductile Iron Butterfly Valve |
| Material | Gray cast iron, brittle | Nodular iron, ductile |
| Tensile Strength | 20,000–40,000 psi | 60,000–120,000 psi |
| Ductility | Low, brittle | High, flexible |
| Pressure Rating | Low (150–200 psi) | Higher (300 psi or more) |
| Impact Resistance | Poor | Excellent |
| Applications | HVAC, water, non-critical systems | Oil/gas, chemical, fire protection |
| Cost | Lower | Higher |
| Corrosion Resistance | Moderate (with coatings) | Moderate (better with coatings) |
9. How to Choose?
- Choose a cast iron butterfly valve if:
- You need a cost-effective solution for low-pressure, non-critical applications such as water supply or HVAC.
- The system operates in a stable environment with minimal stress or vibration.
- Choose a ductile iron butterfly valve if:
- The application involves high pressure, dynamic loads, or corrosive fluids.
- Durability, impact resistance, and long-term reliability are priorities.
- The application requires industrial or critical systems such as fire protection or chemical processing.
10. ZFA VALVE recommendation
As a manufacturer with many years of experience in butterfly valves, ZFA Valve recommends ductile iron. Not only does it perform well, but ductile iron butterfly valves also demonstrate exceptional stability and adaptability in complex and changing operating conditions, effectively reducing maintenance frequency and replacement costs, resulting in higher cost-effectiveness over the long term. Due to declining demand for gray cast iron, cast iron butterfly valves are gradually being phased out. From a raw material perspective, scarcity is becoming increasingly valuable.
